Horizontal Internal Grinding Machine IGT-8N
Multi-process
![IGT-8N](https://www.taiyokoki.com/en/wp-content/uploads/sites/3/2020/11/pic_igt8n.jpg)
Internal grinding machine suitable for grinding spindle
- Equipped with 4 grinding spindles as standard for multi-process grinding in one-time chucking, applicable for workpiece length up to 800mm(31.4in).
- Suitable for multi-process grinding of ID, OD, face and taper of spindles for machine tools, achieving process integration and streamlining of production.
- NC 3-axis loader is available as an option to meet automation needs.
Specification
Range of internal grinding diameter | ø10 mm(0.4 in) ~ ø250 mm(9.8 in) |
---|---|
Range of external grinding diameter | ø240 mm(9.4 in) |
Grinding length | 300 mm(11.8 in) |
Workpiece length | 800 mm(31.4 in) |
Work spindle swing | ø450 mm(17.7 in) |
Swivel angle of work table | Front:1° Back:20° |
Grinding spindle rotation speed | 18,000min-1 ~ 75,000min-1 [4 spindles] |
Floor space (W×D) | 4,200 mm(165.4 in) × 3,200 mm(126.0 in) |
Highlights
Swivel function of setting unit 0.0001°
![](/wp-content/uploads/sites/3/2020/11/pic_igt_1.jpg)
Swivel function is equipped as standard on the headstock with setting unit of 0.0001° by NC command, which achieves taper grinding with high accuracy.
Continuous automatic grinding in one-time chucking
![](/wp-content/uploads/sites/3/2020/11/pic_igt_2.jpg)

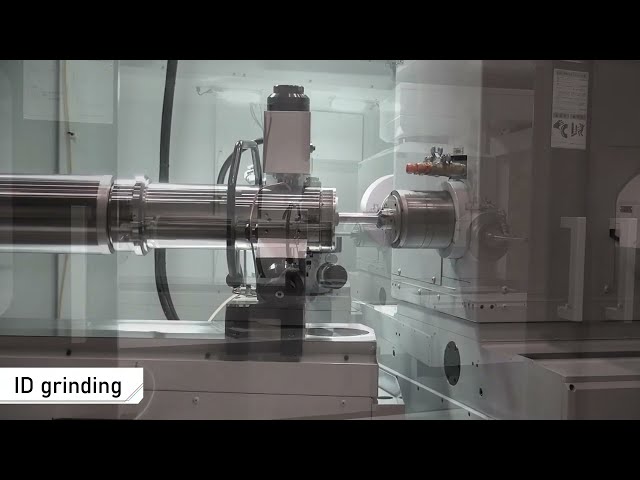

4 grinding spindles are equipped on a turret-type wheelhead as standard which enables ID, OD, face and taper grinding in one-time chucking. It provides optimal grinding of high-precision spindle for machine tools.
