Deep Hole Grinding Machine NVG-7LH
Special model dedicated to deep hole grinding
- Deep hole spindle is equipped as standard for grinding long workpiece up to ø750mm(29.5in) x H1,100mm(43.3in).
- Easy centering and accuracy improvement in ID grinding of big-size deep hole parts.
- Optimal solution for parts such as hydraulic breaker cylinder for construction machinery.

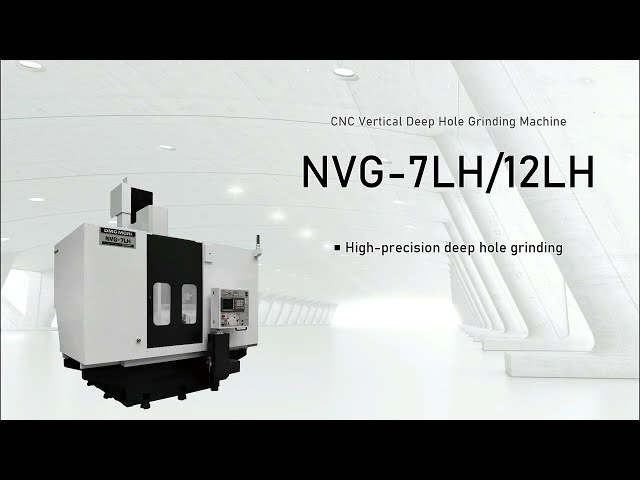

Movie
Specification
| Range of internal grinding diameter | ø160 mm(6.3 in) ～ ø560 mm(22.0 in) |
|---|---|
| Range of external grinding diameter | ～ ø750 mm(29.5 in) |
| Grinding length | 1,000 mm(39.3 in) |
| Work spindle swing | ø750 mm(29.5 in) |
| Workpiece height | 1,100 mm(43.3 in) [including fixture] |
| Max. loading weight on work table | 700 kg(1,543 lb) [including fixture] |
| Grinding spindle rotation speed | 6,000min-1 |
| Floor space (W×D) | 3,340 mm(131.5 in) × 4,050mm(159.5 in) |
There are members-only contents on this page.
You can download product catalogs if you become a member.
