Thread Grinding Machine TGN30/30
![TGN30/30](https://www.taiyokoki.com/en/wp-content/uploads/sites/3/2020/11/pic_tgn3030.jpg)
Thread grinding machine achieving high accuracy and high rigidity
- High-rigidity, high-accuracy thread grinding machine pursuing workability and operability with distance between centers of 300mm(11.8in).

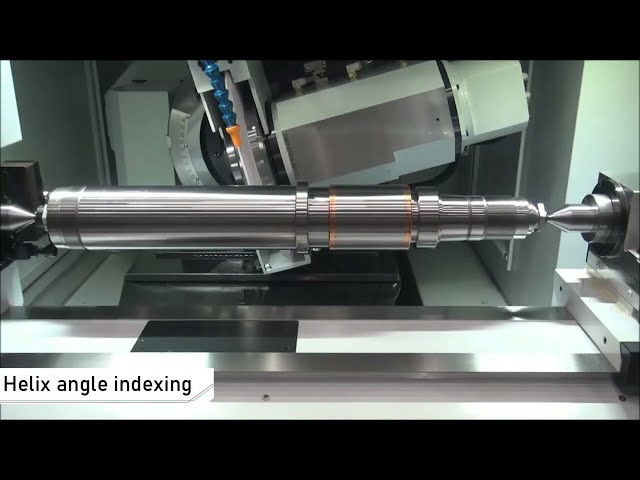

- Helix angle control by easy numerical entry.
- Improvement in stability of pitch diameter of thread by locating a dresser in the back of work spindle.
- Full-closed control on each axis achieving high-accuracy thread grinding.
Specification
Distance between centers | 300 mm(11.8 in) |
---|---|
Thread length | 250 mm(9.8 in) |
Thread diameter | ø90 mm(3.5 in) |
Supportable workpiece weight | 20 kg(44 lb) |
Swivel angle of wheelhead | ±30° |
Grinding wheel dimension | ø400 mm(15.7 in) × 30 mm(1.1 in) × ø203.2 mm(8.0 in) |
Grinding spindle rotation speed | 2,700min-1 |
Floor space (W×D) | 2,050 mm(80.8 in) × 3,500 mm(137.8 in) |
Highlights

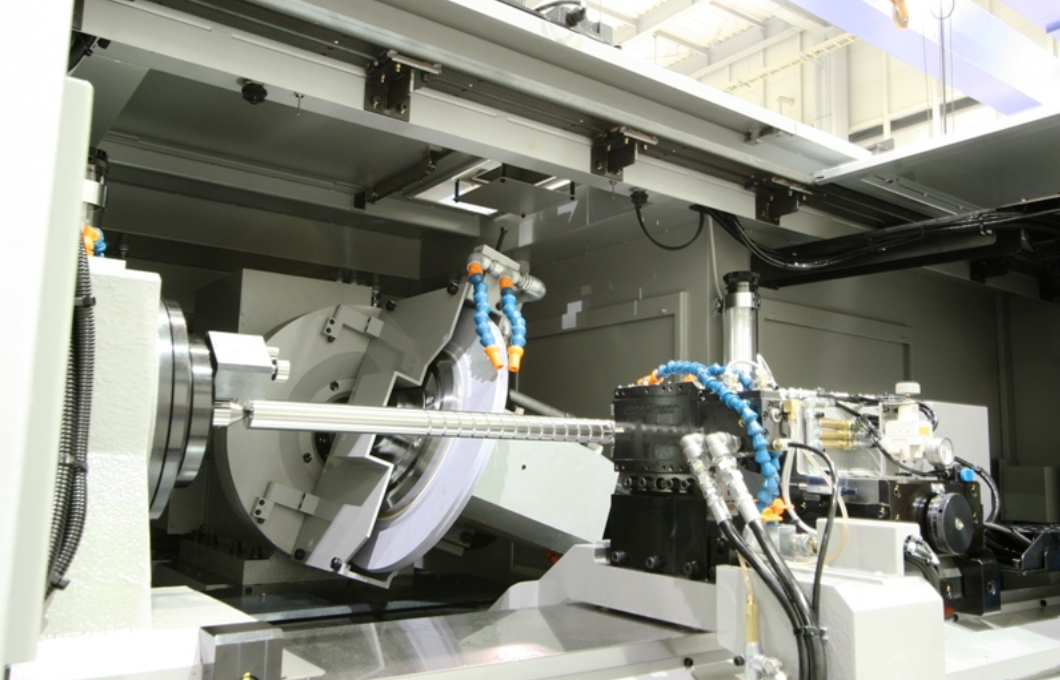

Simple and user-friendly operability and workability
![](/wp-content/uploads/sites/3/2020/11/pic_tgn_1.jpg)
Numerical-controlled swivel of wheelhead enables helix angle change by easy numerical entry. It provides high-accuracy thread grinding for various workpieces such as spindle, tool, thread gauge, ball screw, etc.

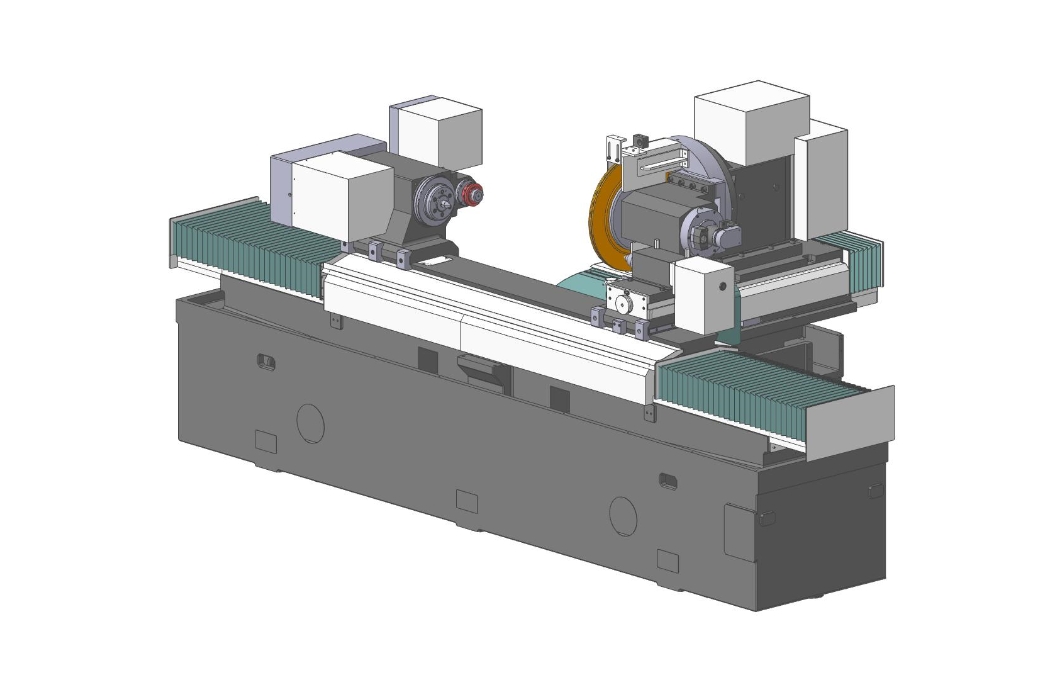

Full-closed control on each axis achieving high-accuracy thread grinding
![](/wp-content/uploads/sites/3/2020/11/pic_tgn_2.jpg)
Rotary encoder with 0.0001°control on work spindle, and optical scale feedback control on X & Z-axis are equipped as standard. By equipping built-in type grinding spindle as standard, machine vibration is minimized to achieve high-accuracy thread grinding even with small-diameter thread.
