Thread Grinding Machine TGN30/80
![TGN30/80](https://www.taiyokoki.com/en/wp-content/uploads/sites/3/2020/11/pic_tgn3080.jpg)

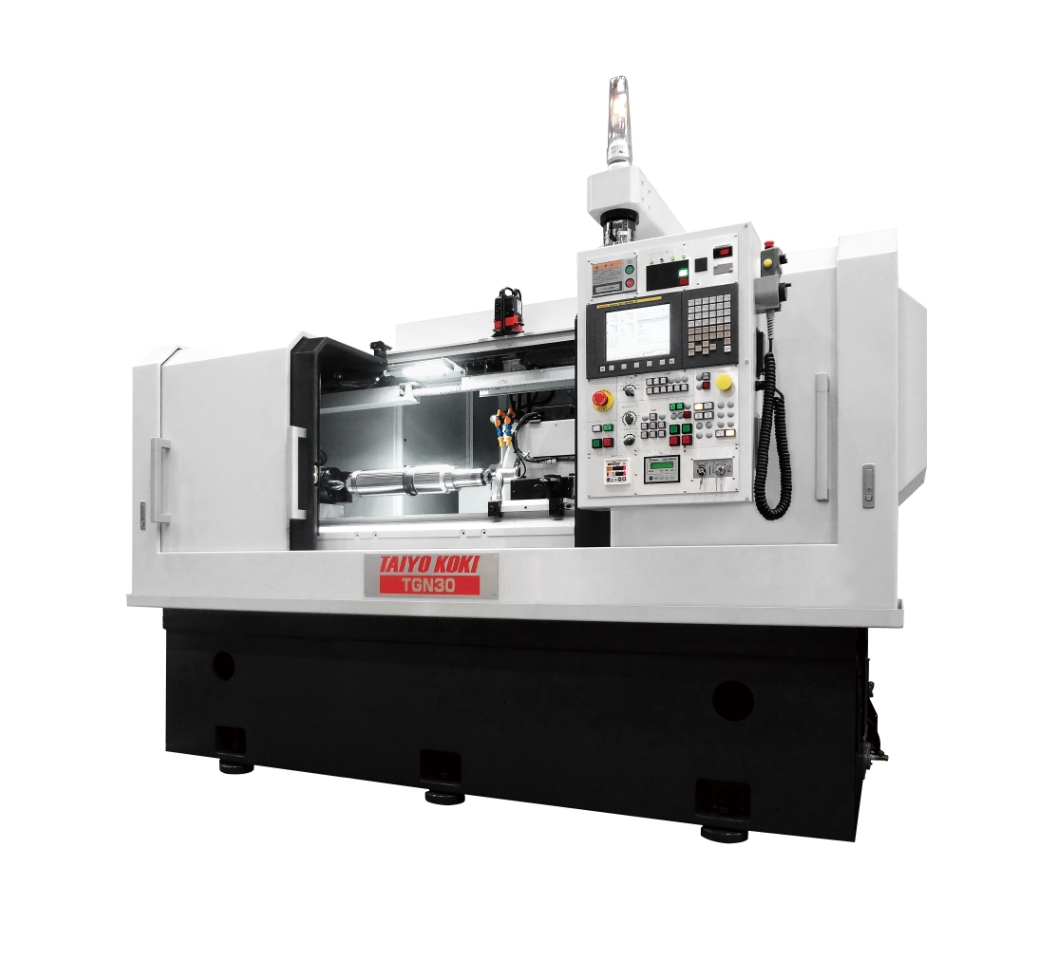

Thread grinding machine achieving high accuracy and high rigidity
- High-rigidity, high-accuracy thread grinding machine pursuing workability and operability with distance between centers of 800mm(31.4in).
- Helix angle control by easy numerical entry.
- Improvement in stability of pitch diameter of thread by locating a dresser in the back of work spindle.
- Full-closed control on each axis achieving high-accuracy thread grinding.
Specification
Distance between centers | 800 mm(31.4 in) |
---|---|
Thread length | 750 mm(29.5 in) |
Thread diameter | ø150mm(5.9 in) |
Supportable workpiece weight | 80 kg(176 lb) |
Swivel angle of wheelhead | ±30° |
Grinding wheel dimension | ø455 mm(17.9 in) × 30 mm(1.1 in) × ø203.2 mm(8.0 in) |
Grinding spindle rotation speed | 2,700min-1 |
Floor space (W×D) | 2,850 mm(112.3 in) × 3,500 mm(137.8 in) |
Highlights
Simple and user-friendly operability and workability
![](/wp-content/uploads/sites/3/2020/11/pic_tgn_1.jpg)
Numerical-controlled swivel of wheelhead enables helix angle change by easy numerical entry. It provides high-accuracy thread grinding for various workpieces such as spindle, tool, thread gauge, ball screw, etc.
Full-closed control on each axis achieving high-accuracy thread grinding
![](/wp-content/uploads/sites/3/2020/11/pic_tgn_2.jpg)
Rotary encoder with 0.0001°control on work spindle, and optical scale feedback control on X & Z-axis are equipped as standard. By equipping built-in type grinding spindle as standard, machine vibration is minimized to achieve high-accuracy thread grinding even with small-diameter thread.
