Vertical Multi-process Grinding Machine - Vertical Mate Vertical Mate 85 2nd Generation
Upgraded model succeeding high precision and multi-process grinding
Equipped with the new grinding spindle developed with DMG MORI
- Applicable for middle-size workpiece up to max loading weight 700kg(1,543lb), work spindle swing ø850mm(33.4in).
- speedMASTER LongNose grinding spindle realizes highest output and rotation speed of the conventional series.
- The operation panel is changed to ERGOline X with user-friendly design providing increased visibility and operability. It supports Digital Transformation (DX) and anti-virus security.
- Automatic measuring device and Z-axis scale, which are essential for high-precision grinding, are included as standard.
Visit DMG MORI Digital Twin Showroom for the inside view and 360ﾟ view.

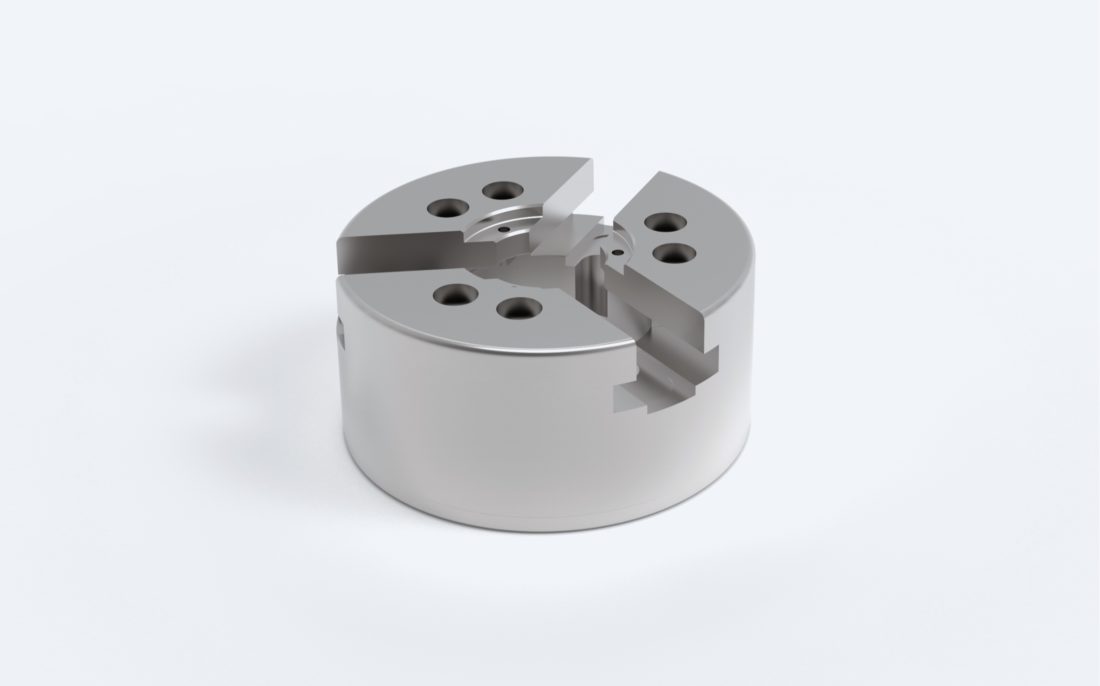

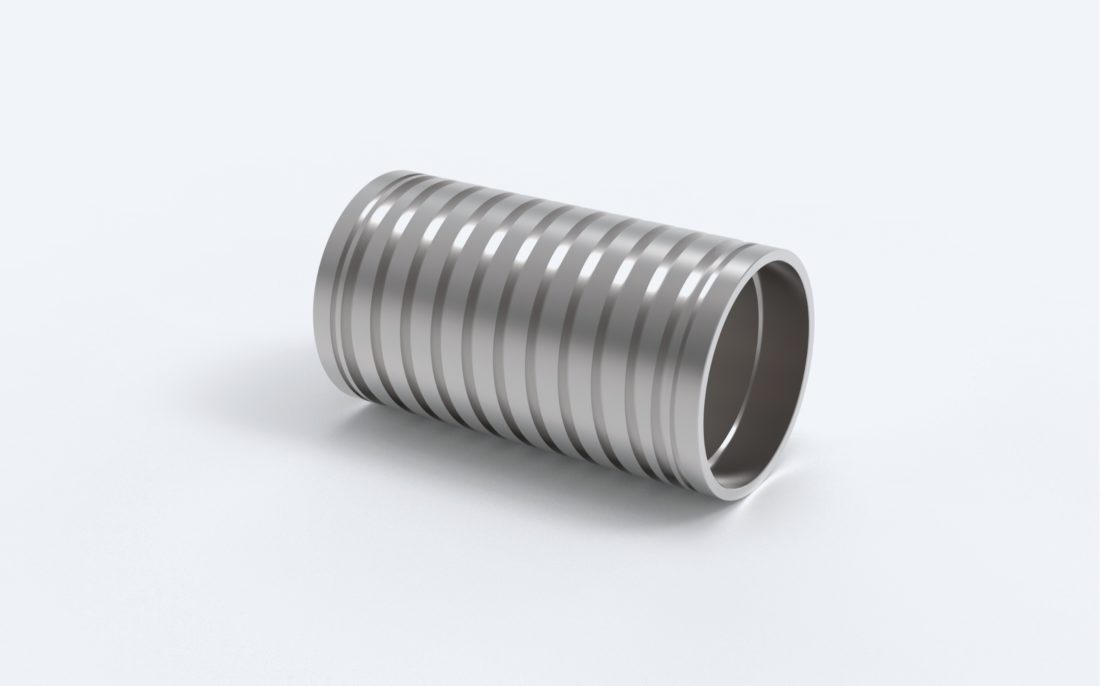

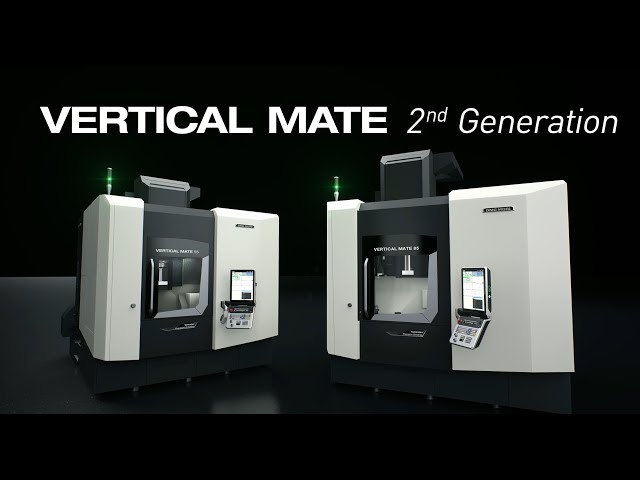

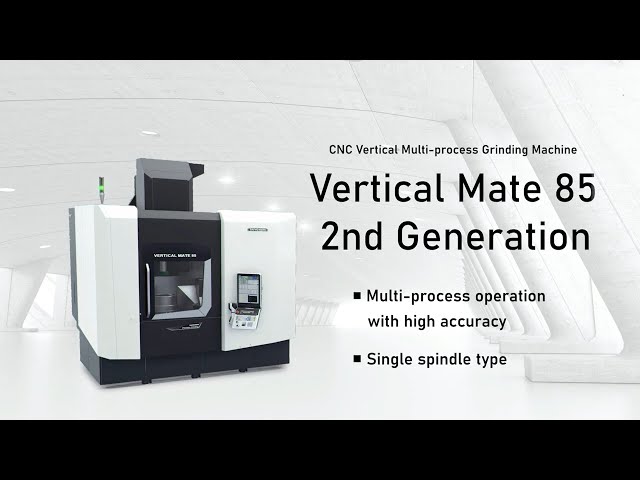

Movie
Specification
| Range of internal grinding diameter | ø50 mm(2.0 in) 〜 ø800 mm(31.4 in) |
|---|---|
| Range of external grinding diameter | 〜 ø800 mm (31.4 in) |
| Grinding length | ID 485 mm(19.0 in) / OD 500 mm(19.6 in) |
| Work spindle swing | ø850 mm(33.4 in) |
| Workpiece height | 600 mm(23.6 in) [including fixture] |
| Max. loading weight on work table | 700 kg(1,543 lb) [including fixture] |
| Grinding spindle rotation speed | 10,000min-1 |
| Floor space (W×D) | 3,015 mm(118.8 in) × 4,050 mm(159.4 in) |
Highlights
Roundness 1.0μm guaranteed
Even in developing a desired model by narrowing down to basic performance,
we make no compromises in accuracy. As the front runner of vertical grinding machines, Taiyo Koki provides high accuracy with multi-processing capability and contributes to various scenes of grinding operation.
Multi-process grinding with high accuracy
Highly efficient grinding is enabled by 2-position indexing of wheelhead, 0° for ID/OD grinding and 22.5° for OD/face using angular grinding wheel, and also by ATC (Auto Tool Changer) equipped as standard. You can select grinding wheel from WA or GC.
